MODEL A, RA, XA5 AND XRA5 CAST IRON SERIES
(Hand Dryer Planning Guide)



Features & Benefits Warranty Materials Mechanisms Specification Guide
Colors Available   Electrical Characteristics   Size and Weight   Installation Information

FEATURES & BENEFITS

  • Superior engineering ensures high performance
  • Quality materials provide maximum durability and vandal resistance
  • All Model A and XA5 dryers deliver high air velocity (7300 linear feet per minute!) to ensure quick drying
  • Available in a wide variety of colors (see color chart below), both surface and recessed mount
  • When hands are present, the Model XA5 dryer automatically activates with high air velocity to ensure quick drying
  • With no buttons to push, the XA5 Series offers improved sanitation
  • XA5 dryers automatically shut off when hands are removed, conserving electrical costs

(Back to top) WARRANTY

  • 10 year limited parts warranty
  • 5 year sensor warranty

(Back to top) MATERIALS

  • Cover construction of 1/4" cast iron with exposed areas of porcelain enamel
  • Two tamper-resistant screws lock cover securely to base
  • Internal parts are plated with corrosion-resistant material
  • Stainless steel tamper-resistant air intake grills

(Back to top) MECHANISMS

  • Motors are universal type, 1/10 HP, 7500 RPM at rated load with resilient mountings and sealed, permanently lubricated ball bearings for durability and rapid drying
  • Dynamically balanced blower wheels for vibration-free running
  • Model A push button models employ a durable cam-operated timer to operate dryer for 30 or 40 seconds after activation
  • Model XA5 automatic dryers use reflective infrared sensors to detect hands, initiate and terminate drying
  • Model XA5 automatic dryers should not be placed less than 18" above projections which may interfere with the operation of the automatic sensor.
(Back to top) SPECIFICATION GUIDE
  Models A, XA5, RA and XRA5 hand dryers shall be manufactured by World Dryer to include a 1/4" thick cast iron cover. Cover to be finished with porcelain enamel. Motor shall be of the universal type, 1/10 HP at 7500 RPM. Dryers shall deliver 7300 linear feet of air per minute (LFM). Hand dryers shall be activated by means of a push button control device. Automatic dryers shall be activated by means of an infrared emitting/ receiving electronic control device. Timer shall be electro-mechanical, cam-operated type. Recessed units will include a 16-gauge steel wall-mounting box. Hand dryers shall be listed under re-examination service of Underwriters' Laboratories, Inc., and certified by the Canadian Standards Association.

(Back to top)
MODEL A/RA PUSH BUTTON SERIES
Electrical Characteristics

A series RA series Electrical Characteristics

Revolving Nozzle Fixed Nozzle Revolving Nozzle Fixed Nozzle Drying Cycle Volts Amps Watts Hz
A A5 RA RA5 30 Sec. 115 20 2300 60
A1 A51 RA1 RA51 40 Sec. 115 20 2300 60
A2 A52 RA2 RA52 40 Sec. 115 15 1725 60
A3 A53 RA3 RA53 30 Sec. 208 11 2300 60
A4 A54 RA4 RA54 30 Sec. 230 10 2300 60
A7 A57 RA7 RA57 30 Sec. 277 8.5 2350 60
A48 A548 RA48 RA548 30 Sec. 230 10 2300 50*
*50Hz units available for Export Markets only.

(Back to top)
MODEL XA5/XRA5 AUTOMATIC SERIES
Electrical Characteristics
MODEL XA5/XRA5 AUTOMATIC SERIES

XA5 series XRA series Electrical Characteristics

Fixed Nozzle Fixed Nozzle Drying Cycle Volts Amps Watts Hz
XA5 XRA5 Auto 115 20 2300 60
XA52 XRA52 Auto 115 15 1725 60
XA53 XRA53 Auto 208 11 2300 60
XA54 XRA54 Auto 230 10 2300 60
XA57 XRA57 Auto 277 8.5 2350 60
XA5482 XRA5482 Auto 230 10 2300 50*
*50Hz units available for Export Markets only.

(Back to top)
Model A, RA, XA5 and XRA5 Size and weight specifications
Series Outer Dimensions (incl. nozzle) Shipping Weight
Model A 11 3/8" W x 9 5/8" H x 8 1/8" D (289mm x 244mm x 206mm) 29 Lbs.
Model RA 13 1/8" W x 13 7/8" H x 5 1/4" D (333mm x 352mm x 133mm) 35 Lbs.
Model XA 11 3/8" W x 9 5/8" H x 8 1/8" D (289mm x 244mm x 206mm) 29 Lbs.
Model XRA 13 1/8" W x 13 7/8" H x 5 1/4" D (333mm x 352mm x 133mm) 35 Lbs.
Model RA5E/XRA5E 13 1/8"W x 13 7/8 "H x 3 7/8 "D (333mm x 352mm x 98mm) 35 Lbs.

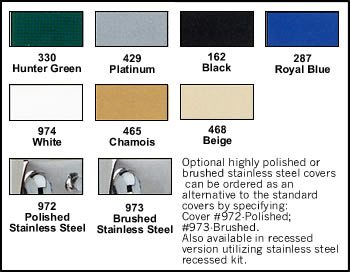

(Back to top) COLOR CHART
  Optional highly polishes or brushed stainless steel covers can be ordered as an alternative to the standarc covers by sepcifying:
  Cover #972 - polished #973 Brushed
  Also available in recessed version utilizing stainless steel recessed kit.
